Image:drawImage with indexed image is black silhouette

Projectitis · August 25, 2024, 1:42am

Hi there,

I’m using drawImage to sort of copy an indexed image, but with a different canvas size, like this:

-- The source image is indexed. It's cropped (like all cels are)
local image = cel.image
-- The dest image is made the same size as the sprite (not cropped)
local dest = Image(sprite.width, sprite.height, image.colorMode)
-- Now draw the image into the destination
dest:drawImage(image, Point(cel.bounds.x, cel.bounds.y))

The destination image is a black silhouette and does not contain the correct palette.

What am I doing wrong?

Cheers,
Peter

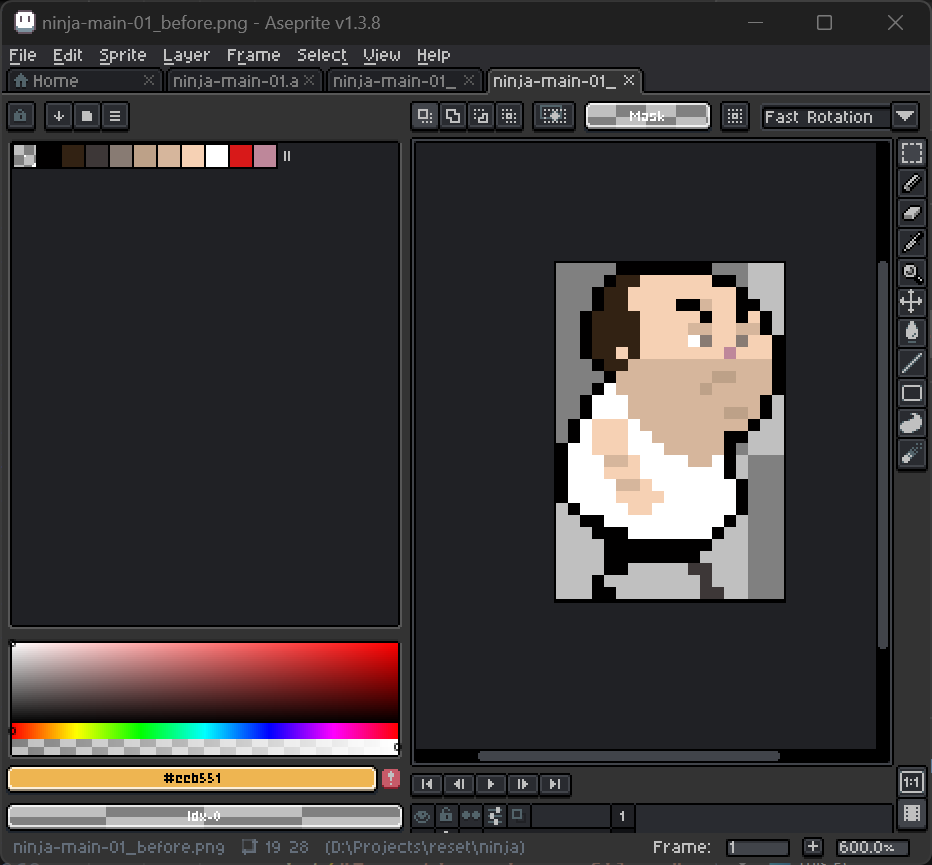

Source:

Dest:

behreandtjeremy · August 25, 2024, 2:56am

afaik, images don’t contain palettes. Sprites do. So if you are copying an image from one sprite and placing the copy in another sprite, then you have to copy the palette(s).

github.com

aseprite/api/blob/main/api/sprite.md#spritesetpalette

# Sprite

## Sprite()

```lua
local sprite = Sprite(width, height)
local sprite = Sprite(width, height, colorMode)
local sprite = Sprite(spec)
local sprite = Sprite(otherSprite)
local sprite = Sprite{ fromFile=filename }
local sprite = Sprite{ fromFile=filename, oneFrame }
```

Creates a new sprite with the given `width` and `height`. The
[color mode](colormode.md#colormode) is optional, [RGB](colormode.md#colormodergb)
by default.

The `spec` parameter is an [image specification](imagespec.md#imagespec) object.

If `otherSprite` is given (other `Sprite` object), the sprite is duplicated.

This file has been truncated. show original

There is an off chance that a source sprite may have multiple palettes.

[Edit: The scripting API doesn’t give you a lot of tools to deal with that scenario, so unless you’re being thorough in making a script for use by others, it’s not worth worrying about.

If you want the two sprites to have different color modes: I’ve not checked if drawImage does a convert; usually I create an RGB image from the indexed image myself.]
